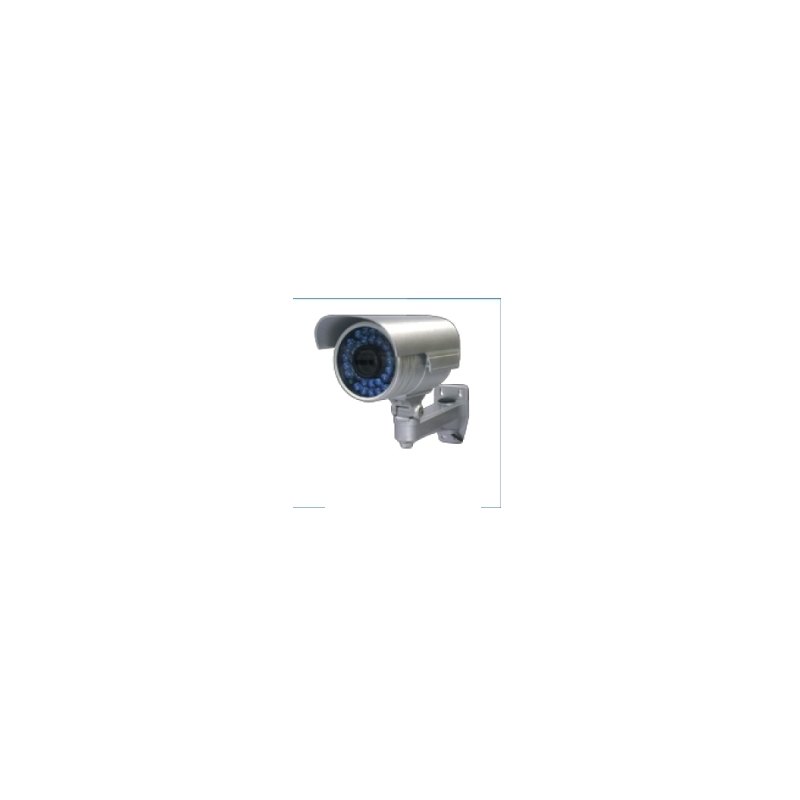

Camera Video Color COMPACT 40653

Camera Video Color COMPACT 40653 cu suport si sursa alimentare
Producator COMELIT Italia
Garantie 24 luni

Descarca Caracteristici seria COMPACT

Caracteristici:
Tipul : IR LED-Zi/Noapte, Carcasa Aluminiu
Utilizare : Interior/Exterior
Senzor : SONY 1/3" CCD
TVL : 420
Lentila : Varifocala 4 - 9 mm
Alimentare : 12VDC, 800 mA
Lux : 0
Nr. leduri : 36 (distanta iluminare noaptea 30m)
Temperatura functionare (°C)  : -10...+50
Protectie la apa : IP66
Altele : trecere automata mod IR

Specifications:
·  Image sensor: 1/3” CCD Sony Super HAD; 4~9 mm varifocal length lens
·  Effective picture elements: 500 H x 582 V (PAL); 510 H x 492 V (NTSC)
·  Horizontal resolution: 420 TVL
·  Horizontal drive frequency: 15625 Hz
·  Vertical drive frequency: 50 Hz
·  Scanning system: 2:1
·  Min. illumination: 0 lux with infrared ON at 30m
·  S/N ratio: > 50 dB (AGC OFF)
·  Electronic shutter: 1/50 - 1/100.000
·  Video output: 1Vpp at 75 OHM
·  Power supply: 12 V DC (power source in equipment)
·  Current consumption: 800 mA with infrared ON
·  Infrared leds: 36 units; range = 30m
·  Infrared leds trigger: 3.1 lux ON/ 3.7 lux OFF
·  Operating temperature: from –10° C to + 50° C
·  Storage temperature: from –30° C to +60° C
·  Environment: External/internal (IP66 protection)
·  Dimensions: ø = 90 x 160 (L) mm (without bracket)
·  Weight: 1.3 kg.
·  Accessories: bracket, power supply
The specifications are subject to variations without warning
